Angles

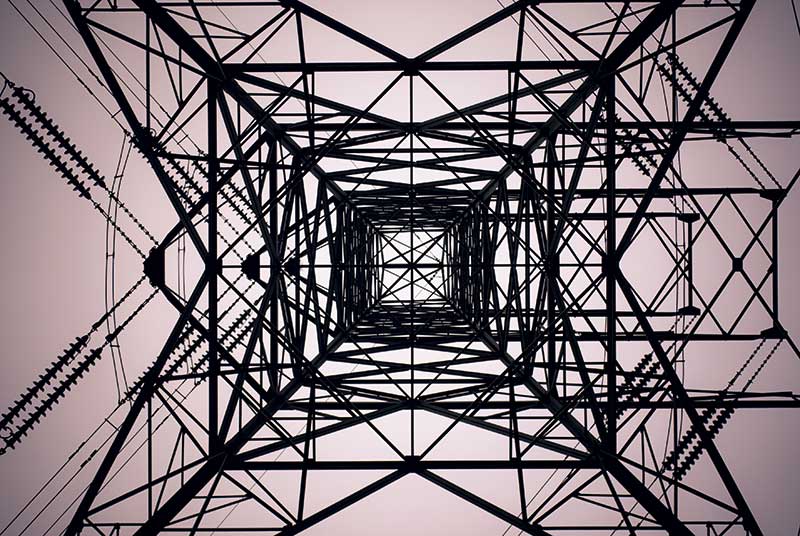

The main destination of the angles is the construction of metal infrastructures, such as pylons and tower cranes

The Pallanzeno plant produces corner profiles of various sizes and qualities. In particular, the range includes corner profiles with equal wings, with dimensions from 120x120x10 to 200x200x34, and corner profiles with unequal wings, in different qualities: S355 J0W, S355 J2W, S355 J0WP

The main destination of the angles is the construction of metal infrastructures, such as pylons and tower cranes.

Sector of use

infrastructures (Pylons) / Cranes.

Production plant

Pallanzeno

Equal Angles from 120x120x10 to 150x150x15

Size A x B x T x R x R1 (mm)
from 120 x 120 x 10 x 13 x 6.5
to 150 x 150 x 15 x 16 x 8

Sez. (cm²) – Massa (Kg/m)
from 23.2 – 18.2
to 43 – 33.8

Equal Angles from 150x150x16 to 200x200x34

Size A x B x T x R x R1 (mm)
from150 x 150 x 16 x 16 x 8
to 200 x 200 x 34 x 18 x 9

Sez. (cm²) – Massa (Kg/m)
from 45.7 – 35.9
to 124,8 – 97,9

Unequal Angles

Size A x B x T x R x R1 (mm)
from 150 x 90 x 10 x 12 x 6
to 200 x 150 x 18 x 15 x 7.5

Sez. (cm²) – Massa (Kg/m)
from 23.2 – 18.2
to 60 – 47.1
